For the system

(a) Find the eigenvalues and eigenvectors.

(b) Classify the critical point (0,0) as to type and determine whether
it is stable, asymptotically stable, or unstable.

(c) Sketch several trajectories in the phase plane and also sketch some typical
graphs of *x*_{1} versus *t*.

(d) Use a computer to plot accurately the curves requested in part (c).

MATLAB can easily find the eigenvectors and eigenvalues for this system:

>> A=[1 2;-5 -1]; >> [V,D]=eig(A) V = -0.1690 - 0.5071i -0.1690 + 0.5071i 0.8452 0.8452 D = 0.0000 + 3.0000i 0 0 0.0000 - 3.0000i >>

Thus, we see that the eigenvectors &xi_{1} and
&xi_{2} and eigenvalues *v*_{1} and
*v*_{2} are:

The eigenvalues are complex and purely imaginary. Thus, according to Table 9.1.1 in Section 9.1 of the text, the origin is a center and it is stable.

The general solution to this system is

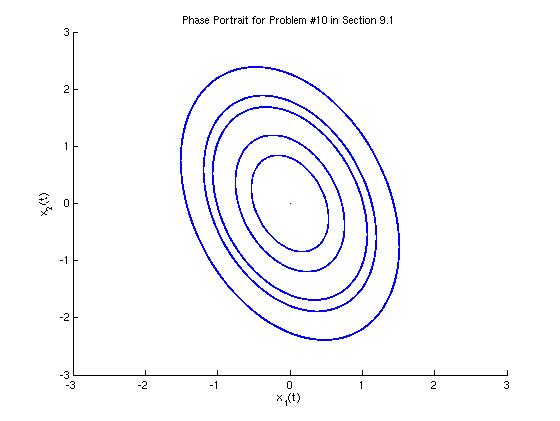

The MATLAB code below will plot 25 curves (not necessarily distinct)
for values of *c*_{1}
and *c*_{2} between -2 and 2.

>> c = [-2 -1 0 1 2]; % These are the coefficients for the solutions >> tpts = [-50:0.05:10]; >> % Open figure, add labels and title >> figure; hold on; >> xlabel('x_{1}(t)'); ylabel('x_{2}(t)'); >> title('Phase Portrait for Problem #10 in Section 9.1'); >> % Loop to use c-values in each slot of general solution >> for i = 1:5 for j = 1:5 strx1=sprintf('%d*(-0.1690*cos(3*t) + 0.5071*sin(3*t)) + %d*(-0.1690*sin(3*t)-0.5071*cos(3*t))',c(i),c(j)); strx2=sprintf('%d*(0.8452*cos(3*t)) + %d*(0.8452*sin(3*t))',c(i),c(j)); x1=inline(strx1,'t'); x2=inline(strx2,'t'); plot(x1(tpts),x2(tpts)); end end >> axis([-3 3 -3 3]); % Re-size window >>

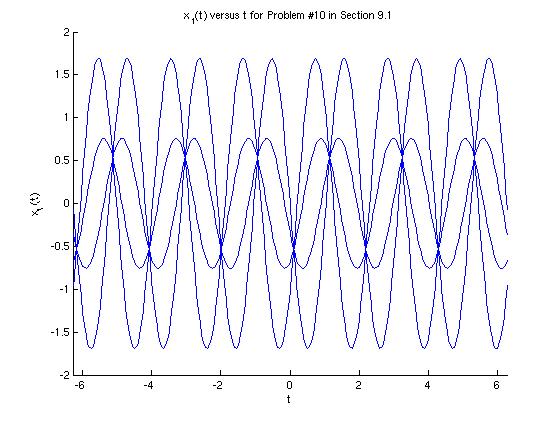

We can also plot a few
representative
graphs of *x*_{1} versus *t*.

>> % Open figure, add labels and title >> figure; hold on; >> xlabel('t'); ylabel('x_{1}(t)'); >> title('x_{1}(t) versus t for Problem #10 in Section 9.1'); >> % These are the coefficients for the 8 curves to graph >> c1=[1 1 -1 -1 3 3 -3 -3]; >> c2=[1 -1 -1 1 1 -1 1 -1]; >> % Loop to graph the 8 curves >> for i = 1:8 strx1=sprintf('%d*(-0.1690*cos(3*t) + 0.5071*sin(3*t)) + %d*(-0.1690*sin(3*t)-0.5071*cos(3*t))',c1(i),c2(j)); x1=inline(strx1); plot(tpts, x1(tpts)); end >> axis([-2*pi 2*pi -2 2]); % Re-size window >>

As we expected, the curves do not decay as *t* approaches infinity,
but the amplitudes remain constant.
